Behind the Scenes of the Xcode Build Process

2020-07-05

Most contents come from https://developer.apple.com/videos/play/wwdc2018/415

The new building system introduced in Xcode 10 is written by Swift from scratch, and brings lots of improved performance and reliability. So what happens when we press CMD + B in Xcode?

In general, Xcode has to do tasks like preprocess source files and compile them by compiler, link source code by linker, copy and process resources like headers, asset catalogues and storyboards, And finally code sign and maybe even do some custom work in a shell script or a make file like building API documentation for your framework or running code linting and validation tools.

image-20200705224132928

Build Task dependency and execution order

Building tasks are executed in a particular order.

image-20200705170528761

The building system use the dependency information to determine which tasks should be run and what task can be run in parallel. This is called dependency order.

We know that a compiler can produce .o files from .m files. Then a linker consumes a number of object files and produces executable or library output. The following graphic shows the dependency info between compilation and linking tasks.

image-20200705170723485

Build tasks are executed in dependency order

  1. The building system will process the project and represented building tasks as a Directed Graph

What happens when you press build? So the first step is for the build system to take the build description, your Xcode project file.Parse it, take into account all the files in your project, your targets and the dependency relationships.Your build settings, and turn it into a tree-like structure called a directed graph.
And this represents all the dependencies between the input and output files in your project and the tasks that will be executed to process them.

image-20200705172316201

  1. Then the low-level execution engine get the dependency specifications from the above graph and figures out which tasks to execute.

    image-20200705225725510

Discovered Dependencies

When clang compile PetController.m source file into object file, PetController.d file is also generated, which contains a listing of information about which header files were included by that source file. Next time you build, if you change any of the header files that PetController.d includes, the building system will recompile PetController.m.

image-20200705225819662

Incremental builds

Having accurate dependency information is very important in order for incremental builds to work correctly and efficiently, in this case, the build system only execute a subset of the tasks on the building tasks graph

how does the build system actually detect changes?

  1. Each time in the building graph has a signature, which computed from stat info of inputs and other task metadata.
  2. Building system tracks signatures of current and previous build, and compared them to determine whether a task should be run.

For example, in the following picture, building system only has to run these 3 highlight tasks when only PetViewVontroler.m changed

image-20200705231435967

How can we help the build system?

The answer is to handle the dependency properly so that the build system can order tasks correctly and build in parallel to save time.

Where do dependencies come from?

  • Built in. The build system ships with rules for the compiler, the linker, the asset catalogue and story board processors and so on.
    And these rules define what kind of files are accepted as inputs as well as what outputs are produced.

  • Target dependencies, which roughly determine the order in which targets are built.

    image-20200705232141133

  • Implicit dependencies

    image-20200705232159289

  • Build phase dependencies. The tasks associated with each of these phrases are usually running groups according to the order in which the phases are listed. But the build system might ignore that order if it knows better.

    image-20200705232220121

  • Scheme order dependencies.

    If you have the parallelize build check box enabled in your scheme settings, you get better build performance and the order of your targets in your scheme doesn’t matter. However, if you turn parallelize build off, Xcode will attempt to build their, your targets in the order you listed them in the build action of the scheme one by one.
    image-20200705232238281

What we can do?

  • Declare inputs and outputs to help the build system avoid rerunning the script tasks unnecessarily

    image-20200705232718754

  • Avoid Auto-link for project dependencies.

    This setting allows the compiler to automatically link to the frameworks corresponding to any modules you import without having to explicitly link them in your link library’s build phase. However, it’s important to note that auto-link does not establish dependency on that framework at the build system level. So it won’t guarantee that the target you depend on is actually built before you try to link against it.

    image-20200705232921705

  • Add explicit dependencies

  • You might also need to create project references by dragging and dropping another Xcode project into your project’s file navigator in order to reveal the targets of other projects you depend on.

Clang compiler

Header map

Header map is used by the Xcode build system to know where the header files are.

In Objective-C, a header file is a promise, saying that the implementation exists somewhere else. If you only update the header file, adding a new function A, without implementation of the function in m file, you broke your promise. Then you use function A in class B. This doesn’t break during compile time, because compiler trusts the promise, saying that there is a function A symbol exists, but during link, we usually got symbol undefined error.

1. How does Clang find your header files?

We can copy the arguments from the Xcode building log when Clang compiles a single .m file, then using command line to see more details.

image-20200705234147883

1
clang <list of arguments> -c Cat.mm -o Cat.o -v

First, Clang will start searching the header in header map files.

image-20200705234506914

image-20200705234528306

What are header maps

image-20200705234700573

In the header map, for the first two keys PetKit.h and Cat.h , it just simply append the framework name, make them as PetKit/PetKit.h and PetKit/Cat.h. This keep existing projects working when you use import <Cat.h> or import Cat.h, but there might be issues down the road with Clang modules. So it is recommended that you always specify the framework name when you include a public or private header file from your own framework.

Suggestion for importing headers explicitly in your source code to help Clang find the header:

  • Always explicit a framework name when you introduce a public and private header
  • always add the header to the project
  • Always use unique name for header avoid shadowing other headers

2. How does Clang find system header files?

Headermap is only for developers’ code. So, in the case of finding system header files, Clang focus on two directories.

1
2
$(SDKROOT)/usr/include
$(SDKROOT)/System/Library/Frameworks.(framework directory).

Take import <Foundation/Foundatoin.h> as an example, Clang appends Foundation/Foundation.h to the (SDKROOT)/usr/includ, and search the header in this path.

1
$(SDKROOT)/usr/include/Foundation/Foundation.h

If it doesn’t find the header under $(SDKROOT)/usr/include , it continues to find header file in framework directory.

1
$SDKROOT/System/Library/Frameworks/Foundation.framework/Headers/Foundation.h

Process your file

Xcode -> Product ->. Perform Action -> Preprocess “”. This is the action to create preprocessed file for us, where the import ... statement is substituted with the contents of that file.

1
#import <Foundation/Foundation.h>

Clang has to find and process over 800 header files for this single include statement. That’s over 9 megabyte of source code that has to be parsed and verified.

After preprocessing:

image-20200706000118839

How does Clang do to avoid these redundant and heavy job?

Clang module

To speed up the building, by using module, Clang can parse the header only once and store the information in the disk, then reuse the cache next time.

In order to achieve this, Clang module should have properties.

  • Context-free

    ignore the context-related statement. Like, macro definitions

    image-20200706091410725

  • Self-contained

    have to specify all the dependencies.

Module Map

A Module Map describes how a certain set of header files translate onto your module.

This is the module map file for Foundation.framework.

image-20200706092447210

  • It obviously describes what is the name of the module which is, Foundation.

  • it also specifies what headers are part of this module. Foundation.h is a umbrella header. If you want to find NSString header, you have to look into Foundation.h file.

    image-20200706091927374

Build Module

While building the foundation module, we have to build its dependency too.

image-20200706095037818

Module Cache

1
$ clang -fmodules —DENABLE_CHINCHILLA=1 ...

The command line arguments for building a module can affect the content of your module. Clang will hash all those arguments and store the modules we created for this particular compiler invocation in a directory matching that hash.

image-20200706095441247

How about Swift

When compiling Objective-C files, the compiler compiles each file separately and in parallel, by process the import statement, and then compiling the file. As we know, unlike Objective-C, Swift doesn’t have headers. So First, the compiler has to find declarations both within the Swift target and also coming from Objective-C. Further, it has to generate interfaces describing the contents of the file.

Finding declarations

  • Within a Swift target

    In the following example, the compiler will check the type in the PetView‘s initializer ‘, firstly, it parses the PetView and knows the declaration of the initializer is well formed. And then, it checks the call inside the PetViewController`.

image-20200709093711492

​ So, actually, when compiling one Swift file, the compiler will parse all the other Swift files in the target. When compiling files separately and in parallel, it causes repeated parsing all files to find declarations.

image-20200709095907259

In order to improve performance, Xcode 10 combines the files into groups to reuse parsing within a group, and only repeat parsing across groups.

image-20200709095800665

  • Find declarations from Objective-C

    In fact, Swiftc compiler embeds clang, so we can can import clang frameworks directly

    1. In any target, when you import an Objective-C framework, the importer finds declarations in the headers exposing Clang’s module map for that framework.
    2. Within a framework that mixes Swift and Objective-C code, the importer finds declarations in the umbrella header.
    3. Within applications and unit test bundles, you can find declaration from the target’s bridging header.

Generating interface

  • How your Objective-C header will be imported into Swift

    In this PetViewController.h, you use the button in the top-left corner of the source editor, see generated interface.

    image-20200710110626097

  • To use Swift in Objective-C

    image-20200710112907949

    • For classes extending NSObject and methods/properties marked @objc
    • Apps and unit tests: both public and internal declarations
    • Frameworks: Only public declarations
    • Compiler ties Objective-C class to mangled Swift class name. The Objective-C name includes the module name PetWall . This is to prevent conflict when two modules define class with same name
    • You can also use @objc(Name) to provide custom name — but must not conflict!

  • To use Swift in other Swift targets

    • Must firstly import other modules to see their declarations, because in Swift, a module is a distributable unit of declarations.

    • Can import Objective-C modules.

    • In Xcode each Swift target produces a separate module, so your app target does.

swfitmodule vs header

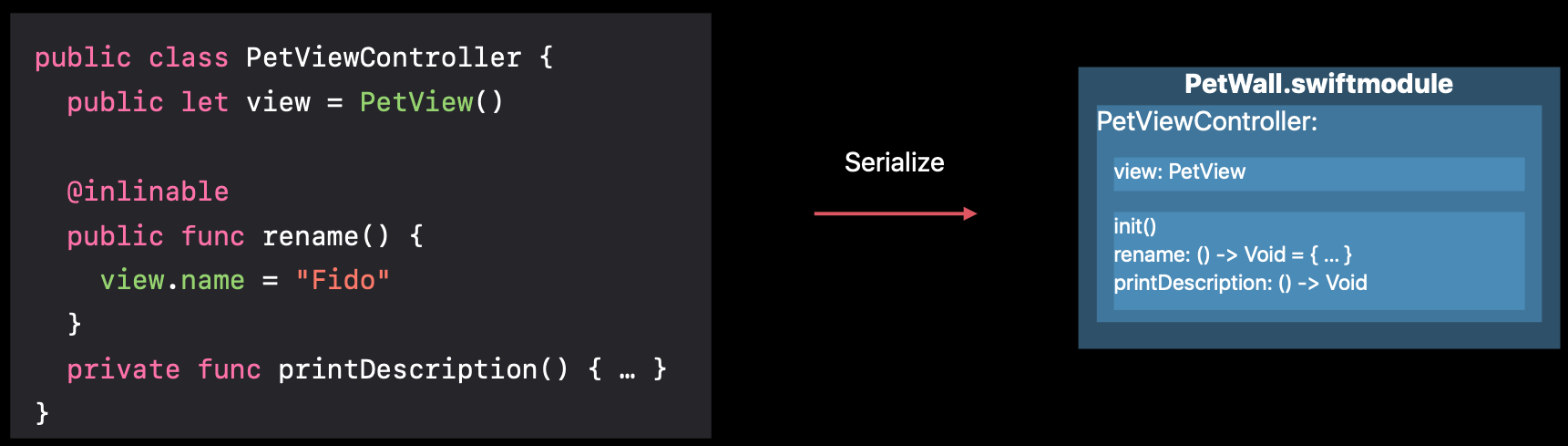

swfitmodule file is serialized, binary representation of module’s declarations, which will be deserialised by compiler to check the types when you use them. So this swfitmodule is a bit like like a generated Objective-C header. But instead of text, it’s a binary representation. Besides, it does include the names and types of private declarations so that we can refer to them in the debugger. In addition, it includes the bodies of inlineablefunctions, likestatic inline function`s in Objective-C header

![image-20200710113202143](image-20200710113202143.png)

image-20200709100603559

For incremental builds, the compiler produces partial Swift module files and then merges them into a single swift module file, and a single Objective-C header.

In summary:

  • Swift uses Objective-C declarations by Bridging header.
  • Objective-C uses Swift declarations by Generated header.
  • In Objective-C Clang find where the header file is by header map files.
  • In Swift, swfitmodule is a bit like like a generated Objective-C header

Linker

What is Linker?

Linking is the final task in building an executable Mach-O. What it does it to combine the output of all compiler invocations into a executable.

Take two kinds of input files

  • Object files (.o)
  • Libraries (.dylib, tbd, .a)

Symbols

A symbol is a name for a fragment of code or data, which may reference other symbols.

  • Symbols can have attributes on them that alter the linker’s behavior, like Weak symbols.

  • Languages often encode data into a symbol mangling the symbol

weak symbols

Object Files

Object file, .o file is the output of individual compiler actions. A non-executable Mach-O file containing code and data fragments.

  • Each fragment is represented by a symbol.
  • Fragment may reference undefined symbol.

Libraries

Libraries define symbols that are not built as part of your target

  • Dylibs: Dynamic libraries

    • Mach-O file that exposes code and data fragments for executables to use. Those are distributed as part of the system, and a number of you also use your own frameworks

  • TBDs: Text Based Dylib Stubs

    • Only contains symbols.

      1. a stub dylib where we delete the bodies of all of the symbols and we just have the names.
      2. a textual representation of them that are easier for us to use
      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      ---
      archs:           [ armv7, armv7s, arm64 ]
      platform:        ios
      install-name:    /usr/lib/libsqlite3.dylib
      current-version: 216.4
      compatibility-version: 9.0
      exports:
        - archs:           [ armv7, armv7s, arm64 ]
          symbols:         [ __sqlite3_lockstate, __sqlite3_purgeEligiblePagerCacheMemory,
                             __sqlite3_system_busy_handler, __sqlite_auto_profile,
                             __sqlite_auto_profile_syslog, __sqlite_auto_trace,
                             __sqlite_auto_trace_syslog, _sqlite3OsShmHasMultipleLinks,
                             _sqlite3OsShmRenamedWhileOpen, _sqlite3OsShmWasTruncated,
                             _sqlite3OsShmWasUnlinkedWhileOpen, _sqlite3VersionNumber,

      from stackoverflow

  • Static archives

    • An archive of multiple .o files built with the archive tool. ar tool. ar
    • It ends with .a suffix, and is something like ZIP or TAR archive.
    • Only the .o files with symbols you reference are included in your app

    see more here

Example

The left side is the source, the right side is the object file.

Firstly, let’s look at the purrFile variable, it is static , and nonexported name. So it doesn’t appear in the object file.

image-20200710150601150

Then, here comes an actual symbol -[Cat purr].

image-20200710150636666

Then, we see two instructions to pass the variable purrFile into playSound function. It is because, we don’t have concrete address for purrFile and we don’t know where this string is going to end up in the final executable. But in ARM64, it could take at most two instructions.

So the compiler leaves the symbolic values PAGE and PAGEOFF that the linker will come in and fix up later.
Finally, we’ve loaded that string into register x0 .

image-20200710150648959

__Z9playSoundPKc is a C++ demangle symbol

image-20200710150707825

image-20200710154006829

When linking, linker takes a number of object files as input, and create a file to put them in. In the __TEXT segment, it copies the executable code from the object file. Then, in another segment, it copy the string. Now, the linker knows the absolute addresses of the string symbol, it will rewrite the instruction using a specific address. Meanwhile, the second instruction just went away, it replaced it with a null instruction that does nothing. nop

image-20200710154246392

Then the linker has to resolve the undefined symbol, __Z9playSoundKc.

image-20200710155242689

We start looking through the .o file in the .a archive file, and found out matching symbol for playSound. Then, linker put this symbol into the PetKit. While copying code, it rewrite_open symbol as _open$stub. Why? because _open is in the lib system TBD file, which means it is in the system library. The linker needs to put more information in the Application executable file to make it call this function properly.

So, it makes a fake function, _open$stub , where it actually loads from the$open pointer and jumps to it.

  • bl
  • ldr (load register) loads data from a memory location into a register.
  • br

image-20200710160920246

image-20200710161911500
